BGP Route Aggregation, Route Unsuppression, Default-Route Injection

Objectives

1.AS12 aggregate 203.81.0.0/16 and advertise including the AS path whose advertised prefixes falls within the supernet
2.AS3 needs to receive supernet and 5.5.5.0.24
3.AS3 needs to prevent not to become transit AS between two ISPs
4.AS3 should use cheap ISP as the primary ISP
5,AS4 is the customer who wants all the specific prefixes
6.AS6 needs only default-route to reach the rest of the network
7.AS 4 and AS6 should use the direct link between them to reach each other prefixes

R1 Config

interface Loopback0
 ip address 203.81.1.1 255.255.255.0
!
interface FastEthernet0/0
 ip address 192.168.12.1 255.255.255.0
!
interface FastEthernet0/1
 ip address 192.168.15.1 255.255.255.0
!
interface FastEthernet1/0
 ip address 192.168.16.1 255.255.255.0
!
router bgp 12
 no synchronization
 bgp router-id 1.1.1.1
 bgp log-neighbor-changes
 network 203.81.1.0
 aggregate-address 203.81.0.0 255.255.0.0 as-set summary-only advertise-map REMOVE-AS3_PATH
 neighbor 192.168.12.2 remote-as 12
 neighbor 192.168.12.2 next-hop-self
 neighbor 192.168.15.5 remote-as 5
 neighbor 192.168.16.6 remote-as 6
 neighbor 192.168.16.6 default-originate
 neighbor 192.168.16.6 route-map DENY-ALL out
 no auto-summary
!
ip prefix-list R3 seq 5 permit 203.81.3.0/24
!
route-map REMOVE-AS3_PATH deny 10
 match ip address prefix-list R3
!
route-map REMOVE-AS3_PATH permit 100
!
route-map DENY-ALL deny 10

R2 Config

interface Loopback0
 ip address 203.81.2.2 255.255.255.0
!
interface FastEthernet0/0
 ip address 192.168.12.2 255.255.255.0
!
interface FastEthernet0/1
 ip address 192.168.24.2 255.255.255.0
!
interface FastEthernet1/0
 ip address 192.168.23.2 255.255.255.0
!
router bgp 12
 no synchronization
 bgp router-id 2.2.2.2
 bgp log-neighbor-changes
 network 203.81.2.0
 aggregate-address 203.81.0.0 255.255.0.0 as-set summary-only advertise-map REMOVE-AS3_PATH
 neighbor 192.168.12.1 remote-as 12
 neighbor 192.168.12.1 next-hop-self
 neighbor 192.168.23.3 remote-as 3
 neighbor 192.168.24.4 remote-as 4
 neighbor 192.168.24.4 unsuppress-map SPECIFIC_PREFIXES
 no auto-summary
!
ip prefix-list SPECIFIC_PREFIXES seq 5 permit 203.81.3.0/24
ip prefix-list SPECIFIC_PREFIXES seq 10 permit 203.81.1.0/24
ip prefix-list SPECIFIC_PREFIXES seq 15 permit 203.81.2.0/24
ip prefix-list SPECIFIC_PREFIXES seq 20 permit 203.81.6.0/24
!
route-map REMOVE-AS3_PATH deny 10
 match ip address prefix-list R3
!
route-map REMOVE-AS3_PATH permit 100
!
route-map SPECIFIC_PREFIXES permit 10
 match ip address prefix-list SPECIFIC_PREFIXES

R3 Config

interface Loopback0
 ip address 203.81.3.3 255.255.255.0
!
interface FastEthernet0/0
 ip address 192.168.23.3 255.255.255.0
!
interface FastEthernet0/1
 ip address 192.168.35.3 255.255.255.0
!
router bgp 3
 no synchronization
 bgp router-id 3.3.3.3
 bgp log-neighbor-changes
 network 203.81.3.0
 neighbor 192.168.23.2 remote-as 12
 neighbor 192.168.23.2 route-map PREPEND-AS in
 neighbor 192.168.23.2 route-map PREVENT-TRANSIT-AS out
 neighbor 192.168.35.5 remote-as 5
 neighbor 192.168.35.5 route-map PREVENT-TRANSIT-AS out
 no auto-summary
!
route-map PREVENT-TRANSIT-AS permit 10
 match as-path 1
!
route-map PREPEND-AS permit 10
 set as-path prepend 3 3 3

R4 Config

interface Loopback0
 ip address 203.81.4.4 255.255.255.0
!
interface FastEthernet0/0
 ip address 192.168.24.4 255.255.255.0
!
interface FastEthernet0/1
 ip address 192.168.46.4 255.255.255.0
!
router bgp 4
 no synchronization
 bgp router-id 4.4.4.4
 bgp log-neighbor-changes
 network 203.81.4.0
 neighbor 192.168.24.2 remote-as 12
 neighbor 192.168.46.6 remote-as 6
 neighbor 192.168.46.6 route-map R4-PREFIX out
 no auto-summary
!
ip prefix-list R4 seq 5 permit 203.81.4.0/24
!
route-map R4-PREFIX permit 10
 match ip address prefix-list R4

R5 Config

interface Loopback0
 ip address 5.5.5.5 255.255.255.0
!
interface FastEthernet0/0
 ip address 192.168.15.5 255.255.255.0
!
interface FastEthernet0/1
 ip address 192.168.35.5 255.255.255.0
!
router bgp 5
 no synchronization
 bgp router-id 5.5.5.5
 bgp log-neighbor-changes
 network 5.5.5.0 mask 255.255.255.0
 neighbor 192.168.15.1 remote-as 12
 neighbor 192.168.35.3 remote-as 3
 no auto-summary

R6 Config

interface Loopback0
 ip address 203.81.6.6 255.255.255.0
!
interface FastEthernet0/0
 ip address 192.168.16.6 255.255.255.0
!
interface FastEthernet0/1
 ip address 192.168.46.6 255.255.255.0
!
router bgp 6
 no synchronization
 bgp router-id 6.6.6.6
 bgp log-neighbor-changes
 network 203.81.6.0
 neighbor 192.168.16.1 remote-as 12
 neighbor 192.168.46.4 remote-as 4
 neighbor 192.168.46.4 route-map R6-PREFIX out
 no auto-summary
!
ip prefix-list R6 seq 5 permit 203.81.6.0/24
!
route-map R6-PREFIX permit 10
 match ip address prefix-list R6

Verification

R5#show ip bgp

   Network          Next Hop            Metric LocPrf Weight Path
*> 5.5.5.0/24       0.0.0.0                  0         32768 i
*> 203.81.0.0/16    192.168.15.1             0             0 12 {6,4} i
*> 203.81.3.0       192.168.35.3             0             0 3 i

R3#show ip bgp

   Network          Next Hop            Metric LocPrf Weight Path
*  5.5.5.0/24       192.168.23.2                           0 3 3 3 12 5 i
*>                  192.168.35.5             0             0 5 i
*> 203.81.0.0/16    192.168.35.5                           0 5 12 {6,4} i
*                   192.168.23.2             0             0 3 3 3 12 {4,6} i
*> 203.81.3.0       0.0.0.0                  0         32768 i

R3#show ip bgp neighbor 192.168.35.5 advertised-routes

   Network          Next Hop            Metric LocPrf Weight Path
*> 203.81.3.0       0.0.0.0                  0         32768 i

R3#show ip bgp neighbor 192.168.23.2 advertised-routes

   Network          Next Hop            Metric LocPrf Weight Path
*> 203.81.3.0       0.0.0.0                  0         32768 i

R4#show ip bgp

   Network          Next Hop            Metric LocPrf Weight Path
*> 5.5.5.0/24       192.168.24.2                           0 12 5 i
*> 203.81.2.0       192.168.24.2             0             0 12 i
*> 203.81.3.0       192.168.24.2                           0 12 3 i
*> 203.81.4.0       0.0.0.0                  0         32768 i
*> 203.81.6.0       192.168.46.6             0             0 6 i

R6#show ip bgp

   Network          Next Hop            Metric LocPrf Weight Path
*> 0.0.0.0          192.168.16.1             0             0 12 i
*> 203.81.4.0       192.168.46.4             0             0 4 i
*> 203.81.6.0       0.0.0.0                  0         32768 i

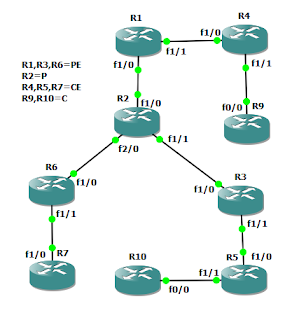

L3VPN over Multipoint L2TPv3 Tunnel

P Router
R1 Config

interface FastEthernet0/0
 ip address 10.10.10.6 255.255.255.252
interface FastEthernet0/1
 ip address 10.10.10.10 255.255.255.252
interface FastEthernet1/0
 ip address 10.10.10.2 255.255.255.252
router ospf 1
 network 0.0.0.0 255.255.255.255 area 0

PE Routers
R2 Config

ip vrf cusA
 rd 100:1
 route-target export 100:1
 route-target import 100:1
!
ip vrf l3vpn-l2tpv3
 rd 100:100
!
interface Loopback0
 ip address 10.10.10.102 255.255.255.255
!
interface Tunnel0
 ip vrf forwarding l3vpn-l2tpv3
 ip address 172.16.1.102 255.255.255.255
 tunnel source Loopback0
 tunnel mode l3vpn l2tpv3 multipoint
!
interface FastEthernet1/0
 ip address 10.10.10.5 255.255.255.252
!
interface FastEthernet1/1
 ip vrf forwarding cusA
 ip address 172.16.24.2 255.255.255.0
!
router ospf 1
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
 no synchronization
 bgp log-neighbor-changes
 neighbor 10.10.10.103 remote-as 1
 neighbor 10.10.10.103 update-source Loopback0
 neighbor 10.10.10.106 remote-as 1
 neighbor 10.10.10.106 update-source Loopback0
 no auto-summary
 !
 address-family ipv4 tunnel
 neighbor 10.10.10.103 activate
 neighbor 10.10.10.106 activate
 exit-address-family
 !
 address-family vpnv4
 neighbor 10.10.10.103 activate
 neighbor 10.10.10.103 send-community extended
 neighbor 10.10.10.103 route-map vpn-l2tpv3 in
 neighbor 10.10.10.106 activate
 neighbor 10.10.10.106 send-community both
 neighbor 10.10.10.106 route-map vpn-l2tpv3 in
 exit-address-family
 !
 address-family ipv4 vrf l3vpn-l2tpv3
 no synchronization
 exit-address-family
 !
 address-family ipv4 vrf cusA
 redistribute connected
 redistribute static
 no synchronization
 exit-address-family
!
ip route vrf cusA 4.4.4.4 255.255.255.255 172.16.24.4
ip route vrf l3vpn-l2tpv3 0.0.0.0 0.0.0.0 Tunnel0
!
route-map vpn-l2tpv3 permit 10
 set ip next-hop in-vrf l3vpn-l2tpv3

R3 Config

ip vrf cusA
 rd 100:1
 route-target export 100:1
 route-target import 100:1
!
ip vrf l3vpn-l2tpv3
 rd 100:100
!
interface Loopback0
 ip address 10.10.10.103 255.255.255.255
!
interface Tunnel0
 ip vrf forwarding l3vpn-l2tpv3
 ip address 172.16.1.103 255.255.255.255
 tunnel source Loopback0
 tunnel mode l3vpn l2tpv3 multipoint
!
interface FastEthernet1/0
 ip address 10.10.10.9 255.255.255.252
!
interface FastEthernet1/1
 ip vrf forwarding cusA
 ip address 172.16.35.3 255.255.255.0
!
router ospf 1
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
 no synchronization
 bgp log-neighbor-changes
 neighbor 10.10.10.102 remote-as 1
 neighbor 10.10.10.102 update-source Loopback0
 neighbor 10.10.10.106 remote-as 1
 neighbor 10.10.10.106 update-source Loopback0
 no auto-summary
 !
 address-family ipv4 tunnel
 neighbor 10.10.10.102 activate
 neighbor 10.10.10.106 activate
 exit-address-family
 !
 address-family vpnv4
 neighbor 10.10.10.102 activate
 neighbor 10.10.10.102 send-community extended
 neighbor 10.10.10.102 route-map vpn-l2tpv3 in
 neighbor 10.10.10.106 activate
 neighbor 10.10.10.106 send-community both
 neighbor 10.10.10.106 route-map vpn-l2tpv3 in
 exit-address-family
 !
 address-family ipv4 vrf l3vpn-l2tpv3
 no synchronization
 exit-address-family
 !
 address-family ipv4 vrf cusA
 redistribute connected
 redistribute static
 no synchronization
 exit-address-family
!
ip route vrf cusA 5.5.5.5 255.255.255.255 172.16.35.5
ip route vrf l3vpn-l2tpv3 0.0.0.0 0.0.0.0 Tunnel0
!
route-map vpn-l2tpv3 permit 10
 set ip next-hop in-vrf l3vpn-l2tpv3

R6 Config

ip vrf cusA
 rd 100:1
 route-target export 100:1
 route-target import 100:1
!
ip vrf l3vpn-l2tpv3
 rd 100:100
!
interface Loopback0
 ip address 10.10.10.106 255.255.255.255
!
interface Tunnel0
 ip vrf forwarding l3vpn-l2tpv3
 ip address 172.16.1.106 255.255.255.255
 tunnel source Loopback0
 tunnel mode l3vpn l2tpv3 multipoint
!
interface FastEthernet1/0
 ip address 10.10.10.1 255.255.255.252
!
interface FastEthernet1/1
 ip vrf forwarding cusA
 ip address 172.16.67.6 255.255.255.0
!
router ospf 1
 network 10.0.0.0 0.255.255.255 area 0
!
router bgp 1
 no synchronization
 bgp log-neighbor-changes
 neighbor 10.10.10.102 remote-as 1
 neighbor 10.10.10.102 update-source Loopback0
 neighbor 10.10.10.103 remote-as 1
 neighbor 10.10.10.103 update-source Loopback0
 no auto-summary
 !
 address-family ipv4 tunnel
 neighbor 10.10.10.102 activate
 neighbor 10.10.10.103 activate
 exit-address-family
 !
 address-family vpnv4
 neighbor 10.10.10.102 activate
 neighbor 10.10.10.102 send-community both
 neighbor 10.10.10.102 route-map vpn-l2tpv3 in
 neighbor 10.10.10.103 activate
 neighbor 10.10.10.103 send-community both
 neighbor 10.10.10.103 route-map vpn-l2tpv3 in
 exit-address-family
 !
 address-family ipv4 vrf l3vpn-l2tpv3
 no synchronization
 exit-address-family
 !
 address-family ipv4 vrf cusA
 redistribute connected
 redistribute static
 no synchronization
 exit-address-family
!
ip route vrf cusA 7.7.7.7 255.255.255.255 172.16.67.7
ip route vrf l3vpn-l2tpv3 0.0.0.0 0.0.0.0 Tunnel0
!
route-map vpn-l2tpv3 permit 10
 set ip next-hop in-vrf l3vpn-l2tpv3

CE Routers
R4 Config

interface Loopback0
 ip address 4.4.4.4 255.255.255.255
!
interface FastEthernet0/0
 ip address 172.16.24.4 255.255.255.0
!
ip route 0.0.0.0 0.0.0.0 172.16.24.2

R5 Config

interface Loopback0
 ip address 5.5.5.5 255.255.255.255
!
interface FastEthernet0/0
 ip address 172.16.35.5 255.255.255.0
ip route 0.0.0.0 0.0.0.0 172.16.35.3

R7 Config

interface Loopback0
 ip address 7.7.7.7 255.255.255.255
!
interface FastEthernet0/0
 ip address 172.16.67.7 255.255.255.0
!
ip route 0.0.0.0 0.0.0.0 172.16.67.6

Verification

R2#show ip bgp ipv4 tunnel

   Network          Next Hop            Metric LocPrf Weight Path
*> 10.10.10.102/32  0.0.0.0                  0         32768 ?
*>i10.10.10.103/32  10.10.10.103             0    100      0 ?
*>i10.10.10.106/32  10.10.10.106             0    100      0 ?

R2#show ip bgp vpnv4 all

   Network          Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 100:1 (default for vrf cusA)
*> 4.4.4.4/32       172.16.24.4              0         32768 ?
*>i5.5.5.5/32       10.10.10.103             0    100      0 ?
*>i7.7.7.7/32       10.10.10.106             0    100      0 ?
*> 172.16.24.0/24   0.0.0.0                  0         32768 ?
*>i172.16.35.0/24   10.10.10.103             0    100      0 ?
*>i172.16.67.0/24   10.10.10.106             0    100      0 ?

R4#ping 5.5.5.5 source loopback 0
!!!!!

R4#ping 7.7.7.7 source loopback 0
!!!!!

MPLS VPN Configuration and Tracing LDP Labels

PE Routers
R1 Config

ip vrf one
 rd 1:1
 route-target export 1:1
 route-target import 1:1
interface Loopback0
 ip address 1.1.1.1 255.255.255.255
interface FastEthernet0/0
 ip address 192.168.12.1 255.255.255.0
 mpls ip
interface FastEthernet0/1
 ip vrf forwarding one
 ip address 192.168.15.1 255.255.255.0
router ospf 1
 network 1.1.1.1 0.0.0.0 area 0
 network 192.168.12.1 0.0.0.0 area 0
router bgp 1
 no bgp default ipv4-unicast
 neighbor 4.4.4.4 remote-as 1
 neighbor 4.4.4.4 update-source Loopback0
 address-family vpnv4
  neighbor 4.4.4.4 activate
  neighbor 4.4.4.4 send-community extended
 address-family ipv4 vrf one
  redistribute connected
  redistribute static
ip route vrf one 5.5.5.5 255.255.255.255 192.168.15.5
ip route vrf one 55.55.55.55 255.255.255.255 192.168.15.5

R4 Config

ip vrf one
 rd 1:1
 route-target export 1:1
 route-target import 1:1
interface Loopback0
 ip address 4.4.4.4 255.255.255.255
interface FastEthernet0/0
 ip address 192.168.34.4 255.255.255.0
 mpls ip
interface FastEthernet0/1
 ip vrf forwarding one
 ip address 192.168.46.4 255.255.255.0
router ospf 1
 network 4.4.4.4 0.0.0.0 area 0
 network 192.168.34.4 0.0.0.0 area 0
router bgp 1
 no bgp default ipv4-unicast
 neighbor 1.1.1.1 remote-as 1
 neighbor 1.1.1.1 update-source Loopback0
 address-family vpnv4
  neighbor 1.1.1.1 activate
  neighbor 1.1.1.1 send-community extended
 address-family ipv4 vrf one
  redistribute connected
  redistribute static
ip route vrf one 6.6.6.6 255.255.255.255 192.168.46.6
ip route vrf one 66.66.66.66 255.255.255.255 192.168.46.6

P Routers
R2 Config

interface FastEthernet0/0
 ip address 192.168.12.2 255.255.255.0
 mpls ip
interface FastEthernet0/1
 ip address 192.168.23.2 255.255.255.0
 mpls ip
router ospf 1
 network 192.168.12.2 0.0.0.0 area 0
 network 192.168.23.2 0.0.0.0 area 0

R3 Config

interface FastEthernet0/0
 ip address 192.168.23.3 255.255.255.0
 mpls ip
interface FastEthernet0/1
 ip address 192.168.34.3 255.255.255.0
 mpls ip
router ospf 1
 network 192.168.23.3 0.0.0.0 area 0
 network 192.168.34.3 0.0.0.0 area 0

CE Routers
R5 Config

interface Loopback0
 ip address 5.5.5.5 255.255.255.255
interface Loopback1
 ip address 55.55.55.55 255.255.255.255
interface FastEthernet0/0
 ip address 192.168.15.5 255.255.255.0
ip route 0.0.0.0 0.0.0.0 192.168.15.1

R6 Config

interface Loopback0
 ip address 6.6.6.6 255.255.255.255
interface Loopback1
 ip address 66.66.66.66 255.255.255.255
interface FastEthernet0/0
 ip address 192.168.46.6 255.255.255.0
ip route 0.0.0.0 0.0.0.0 192.168.46.4

Verification

R1#show bgp vpnv4 unicast all summary
Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
4.4.4.4         4     1      18      19       13    0    0 00:13:00        3

R1#show bgp vpnv4 unicast all
Route Distinguisher: 1:1 (default for vrf one)
*> 5.5.5.5/32       192.168.15.5             0         32768 ?
*>i6.6.6.6/32       4.4.4.4                  0    100      0 ?
*> 55.55.55.55/32   192.168.15.5             0         32768 ?
*>i66.66.66.66/32   4.4.4.4                  0    100      0 ?
*> 192.168.15.0     0.0.0.0                  0         32768 ?
*>i192.168.46.0     4.4.4.4                  0    100      0 ?


R5#ping 6.6.6.6 source loopback 0
!!!!!


Ingress PE router imposes two labels on the customers data packets when forwarding to the egress PE router. The bottom label in the label stack is called vpnv4 label which is used by the egress PE router sending the packet to the appropriate customer. The top label is called transport label that is used in the provider core for the purpose of switching the packets to the respective PE router.

Tracing the VPNv4 Label

R5#traceroute 6.6.6.6
  1 192.168.15.1 16 msec 28 msec 4 msec
  2 192.168.12.2 [MPLS: Labels 18/19 Exp 0] 80 msec 60 msec 76 msec
  3 192.168.23.3 [MPLS: Labels 18/19 Exp 0] 64 msec 116 msec 60 msec
  4 192.168.46.4 [MPLS: Label 19 Exp 0] 60 msec 68 msec 52 msec
  5 192.168.46.6 88 msec *  140 msec

R1#show bgp vpnv4 unicast vrf one 6.6.6.6
BGP routing table entry for 1:1:6.6.6.6/32, version 5
    4.4.4.4 (metric 31) from 4.4.4.4 (4.4.4.4)
         Extended Community: RT:1:1
      mpls labels in/out nolabel/19

R4#show bgp vpnv4 unicast vrf one labels
 Route Distinguisher: 1:1 (one)
   6.6.6.6/32       192.168.46.6    19/nolabel

Tracing Transport Label

R1#show mpls forwarding-table
Local  Outgoing    Prefix            Bytes tag  Outgoing   Next Hop
18     18          4.4.4.4/32        0          Fa0/0      192.168.12.2

R2#show  mpls forwarding-table
Local  Outgoing    Prefix            Bytes tag  Outgoing   Next Hop
18     18          4.4.4.4/32        4463       Fa0/1      192.168.23.3

R3#show mpls forwarding-table
Local  Outgoing    Prefix            Bytes tag  Outgoing   Next Hop
18     Pop tag     4.4.4.4/32        4748       Fa0/1      192.168.34.4

Multicast MDT Using SSM

PE Routers
R1 Config

vrf definition one
 rd 1:1
 route-target export 1:1
 route-target import 1:1
  address-family ipv4
 mdt default 232.0.0.1
 mdt data 232.1.1.0 0.0.0.255
ip multicast-routing
ip multicast-routing vrf one
interface Loopback0
 ip address 10.10.10.10 255.255.255.255
 ip pim sparse-mode
interface FastEthernet1/0
 ip address 192.168.12.1 255.255.255.0
 ip pim sparse-mode
 mpls ip
interface FastEthernet1/1
 vrf forwarding one
 ip address 192.168.14.1 255.255.255.0
 ip pim sparse-mode
router ospf 1
 network 10.10.10.10 0.0.0.0 area 0
 network 192.168.12.1 0.0.0.0 area 0
router bgp 13
 no bgp default ipv4-unicast
 bgp log-neighbor-changes
 neighbor 30.30.30.30 remote-as 13
 neighbor 30.30.30.30 update-source Loopback0
 neighbor 60.60.60.60 remote-as 13
 address-family vpnv4
  neighbor 30.30.30.30 activate
  neighbor 30.30.30.30 send-community extended
  neighbor 60.60.60.60 activate
  neighbor 60.60.60.60 send-community extended
 address-family ipv4 mdt
  neighbor 30.30.30.30 activate
  neighbor 30.30.30.30 send-community extended
  neighbor 60.60.60.60 activate
  neighbor 60.60.60.60 send-community extended
 address-family ipv4 vrf one
  redistribute connected
  redistribute static
ip pim ssm default
ip route vrf one 40.40.40.40 255.255.255.255 192.168.14.4
ip route vrf one 192.168.49.0 255.255.255.0 192.168.14.4

R3 Config

vrf definition one
 rd 1:1
 route-target export 1:1
 route-target import 1:1
 address-family ipv4
 mdt default 232.0.0.1
 mdt data 232.3.3.0 0.0.0.255
ip multicast-routing
ip multicast-routing vrf one
interface Loopback0
 ip address 30.30.30.30 255.255.255.255
 ip pim sparse-mode
interface FastEthernet1/0
 ip address 192.168.23.3 255.255.255.0
 ip pim sparse-mode
 mpls ip
interface FastEthernet1/1
 vrf forwarding one
 ip address 192.168.35.3 255.255.255.0
 ip pim sparse-mode
router ospf 1
 network 30.30.30.30 0.0.0.0 area 0
 network 192.168.23.3 0.0.0.0 area 0
router bgp 13
 no bgp default ipv4-unicast
 bgp log-neighbor-changes
 neighbor 10.10.10.10 remote-as 13
 neighbor 10.10.10.10 update-source Loopback0
 neighbor 60.60.60.60 remote-as 13
 address-family vpnv4
  neighbor 10.10.10.10 activate
  neighbor 10.10.10.10 send-community extended
  neighbor 60.60.60.60 activate
  neighbor 60.60.60.60 send-community extended
 address-family ipv4 mdt
  neighbor 10.10.10.10 activate
  neighbor 10.10.10.10 send-community extended
  neighbor 60.60.60.60 activate
  neighbor 60.60.60.60 send-community extended
 address-family ipv4 vrf one
  no synchronization
  redistribute connected
  redistribute static
ip pim ssm default
ip route vrf one 192.168.105.0 255.255.255.0 192.168.35.5

R6 Config

vrf definition one
 rd 1:1
 route-target export 1:1
 route-target import 1:1
 address-family ipv4
 mdt default 232.0.0.1
 mdt data 232.6.6.0 0.0.0.255
ip multicast-routing
ip multicast-routing vrf one
interface Loopback0
 ip address 60.60.60.60 255.255.255.255
 ip pim sparse-mode
interface FastEthernet1/0
 ip address 192.168.26.6 255.255.255.0
 ip pim sparse-mode
 mpls ip
interface FastEthernet1/1
 vrf forwarding one
 ip address 192.168.67.6 255.255.255.0
 ip pim sparse-mode
router ospf 1
 network 60.60.60.60 0.0.0.0 area 0
 network 192.168.26.6 0.0.0.0 area 0
router bgp 13
 no bgp default ipv4-unicast
 bgp log-neighbor-changes
 neighbor rr peer-group
 neighbor rr remote-as 13
 neighbor rr update-source Loopback0
 neighbor 10.10.10.10 peer-group rr
 neighbor 30.30.30.30 peer-group rr
 address-family vpnv4
  neighbor rr send-community extended
  neighbor rr next-hop-self
  neighbor 10.10.10.10 activate
  neighbor 30.30.30.30 activate
 address-family ipv4 mdt
  neighbor 10.10.10.10 activate
  neighbor 30.30.30.30 activate
 address-family ipv4 vrf one
  no synchronization
  redistribute connected
ip pim ssm default

P Router
R2 Config

interface Loopback0
 ip address 20.20.20.20 255.255.255.255
 ip pim sparse-mode
interface FastEthernet1/0
 ip address 192.168.12.2 255.255.255.0
 ip pim sparse-mode
 mpls ip
interface FastEthernet1/1
 ip address 192.168.23.2 255.255.255.0
 ip pim sparse-mode
 mpls ip
interface FastEthernet2/0
 ip address 192.168.26.2 255.255.255.0
 ip pim sparse-mode
 mpls ip
router ospf 1
 network 20.20.20.20 0.0.0.0 area 0
 network 192.168.12.2 0.0.0.0 area 0
 network 192.168.23.2 0.0.0.0 area 0
 network 192.168.26.2 0.0.0.0 area 0
ip pim bsr-candidate Loopback0 0
ip pim rp-candidate Loopback0
ip pim ssm default

CE Routers
R4 Config

ip multicast-routing
interface Loopback0
 ip address 40.40.40.40 255.255.255.255
 ip pim sparse-mode!
interface FastEthernet1/0
 ip address 192.168.14.4 255.255.255.0
 ip pim sparse-mode
interface FastEthernet1/1
 ip address 192.168.49.4 255.255.255.0
 ip pim sparse-mode
ip pim bsr-candidate Loopback0 0
ip pim rp-candidate Loopback0
ip route 0.0.0.0 0.0.0.0 192.168.14.1

R5 Config

ip multicast-routing
interface FastEthernet1/0
 ip address 192.168.35.5 255.255.255.0
 ip pim sparse-mode
interface FastEthernet1/1
 ip address 192.168.105.5 255.255.255.0
 ip pim sparse-mode
ip route 0.0.0.0 0.0.0.0 192.168.35.3

R7 Config

ip multicast-routing
interface FastEthernet1/0
 ip address 192.168.67.7 255.255.255.0
 ip pim sparse-mode
ip route 0.0.0.0 0.0.0.0 192.168.67.6

C Router
R9 Config

ip multicast-routing
interface FastEthernet0/0
 ip address 192.168.49.9 255.255.255.0
 ip pim sparse-mode
ip route 0.0.0.0 0.0.0.0 192.168.49.4

R10 Config

ip multicast-routing
interface FastEthernet0/0
 ip address 192.168.105.10 255.255.255.0
 ip pim sparse-mode
ip route 0.0.0.0 0.0.0.0 192.168.105.5

Verification

R9#show ip pim rp map
PIM Group-to-RP Mappings

Group(s) 224.0.0.0/4
  RP 40.40.40.40 (?), v2
    Info source: 40.40.40.40 (?), via bootstrap, priority 0, holdtime 150
         Uptime: 00:09:16, expires: 00:02:10

R1# show bgp ipv4 mdt all

   Network          Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 1:1 (default for vrf one)
*> 10.10.10.10/32   0.0.0.0                                0 ?
*>i30.30.30.30/32   30.30.30.30              0    100      0 ?
*>i60.60.60.60/32   60.60.60.60              0    100      0 ?

R7(config)#interface fast1/0
R7(config-if)#ip igmp join-group 239.0.0.2

R10(config)#interface fast0/0
R10(config-if)#ip igmp join-group 239.0.0.1

R9#ping 239.0.0.1 repeat 10000
Reply to request 0 from 192.168.105.10, 136 ms
Reply to request 1 from 192.168.105.10, 168 ms

R9#ping 239.0.0.2 repeat 1000
Reply to request 19 from 192.168.67.7, 420 ms
Reply to request 20 from 192.168.67.7, 224 ms


R2#show ip mroute
(10.10.10.10, 232.0.0.1), 00:13:05/00:03:11, flags: sT
  Incoming interface: FastEthernet1/0, RPF nbr 192.168.12.1
  Outgoing interface list:
    FastEthernet2/0, Forward/Sparse, 00:13:05/00:03:11
    FastEthernet1/1, Forward/Sparse, 00:13:05/00:03:10

(60.60.60.60, 232.0.0.1), 00:13:07/00:03:08, flags: sT
  Incoming interface: FastEthernet2/0, RPF nbr 192.168.26.6
  Outgoing interface list:
    FastEthernet1/0, Forward/Sparse, 00:13:07/00:03:08
    FastEthernet1/1, Forward/Sparse, 00:13:07/00:03:08

(30.30.30.30, 232.0.0.1), 00:13:26/00:02:55, flags: sT
  Incoming interface: FastEthernet1/1, RPF nbr 192.168.23.3
  Outgoing interface list:
    FastEthernet1/0, Forward/Sparse, 00:13:26/00:02:52
    FastEthernet2/0, Forward/Sparse, 00:13:26/00:02:55

(10.10.10.10, 232.1.1.1), 00:00:31/00:02:58, flags: sT
  Incoming interface: FastEthernet1/0, RPF nbr 192.168.12.1
  Outgoing interface list:
    FastEthernet2/0, Forward/Sparse, 00:00:31/00:02:58

(10.10.10.10, 232.1.1.0), 00:01:35/00:02:53, flags: sT
  Incoming interface: FastEthernet1/0, RPF nbr 192.168.12.1
  Outgoing interface list:
    FastEthernet1/1, Forward/Sparse, 00:01:35/00:02:53

(*, 224.0.1.40), 00:15:49/00:02:19, RP 0.0.0.0, flags: DCL
  Incoming interface: Null, RPF nbr 0.0.0.0
  Outgoing interface list:
    Loopback0, Forward/Sparse, 00:15:46/00:02:19

R1#show ip int bri
Interface              IP-Address      OK? Method Status                Protocol
FastEthernet0/0        unassigned      YES NVRAM  administratively down down
FastEthernet1/0        192.168.12.1    YES NVRAM  up                    up
FastEthernet1/1        192.168.14.1    YES NVRAM  up                    up
Loopback0              10.10.10.10     YES NVRAM  up                    up
Tunnel0                192.168.12.1    YES unset  up                    up
Tunnel1                192.168.14.1    YES unset  up                    up
Tunnel2                10.10.10.10     YES unset  up                    up


R1#show ip mroute vrf one

(*, 239.0.0.1), 00:03:40/00:02:46, RP 40.40.40.40, flags: S
  Incoming interface: FastEthernet1/1, RPF nbr 192.168.14.4
  Outgoing interface list:
    Tunnel2, Forward/Sparse, 00:03:40/00:02:46

(192.168.49.9, 239.0.0.1), 00:03:07/00:00:22, flags: T
  Incoming interface: FastEthernet1/1, RPF nbr 192.168.14.4
  Outgoing interface list:
    Tunnel2, Forward/Sparse, 00:03:07/00:03:18

(*, 239.0.0.2), 00:02:01/00:03:28, RP 40.40.40.40, flags: S
  Incoming interface: FastEthernet1/1, RPF nbr 192.168.14.4
  Outgoing interface list:
    Tunnel2, Forward/Sparse, 00:02:01/00:03:28

(192.168.49.9, 239.0.0.2), 00:01:58/00:01:31, flags: T
  Incoming interface: FastEthernet1/1, RPF nbr 192.168.14.4
  Outgoing interface list:
    Tunnel2, Forward/Sparse, 00:01:58/00:03:28

(*, 224.0.1.40), 00:17:29/00:02:36, RP 0.0.0.0, flags: DPL
  Incoming interface: Null, RPF nbr 0.0.0.0
  Outgoing interface list: Null

R3#show ip mroute

(10.10.10.10, 232.0.0.1), 00:43:14/stopped, flags: sTIZ
  Incoming interface: FastEthernet1/0, RPF nbr 192.168.23.2
  Outgoing interface list:
    MVRF one, Forward/Sparse, 00:43:14/00:01:45

(60.60.60.60, 232.0.0.1), 00:43:16/stopped, flags: sTIZ
  Incoming interface: FastEthernet1/0, RPF nbr 192.168.23.2
  Outgoing interface list:
    MVRF one, Forward/Sparse, 00:43:16/00:01:43

(30.30.30.30, 232.0.0.1), 00:43:34/00:03:17, flags: sT
  Incoming interface: Loopback0, RPF nbr 0.0.0.0
  Outgoing interface list:
    FastEthernet1/0, Forward/Sparse, 00:43:34/00:03:17

(10.10.10.10, 232.1.1.0), 00:00:56/00:02:03, flags: sTIZ
  Incoming interface: FastEthernet1/0, RPF nbr 192.168.23.2
  Outgoing interface list:
    MVRF one, Forward/Sparse, 00:00:56/00:02:03

(*, 224.0.1.40), 00:45:38/00:02:25, RP 0.0.0.0, flags: DCL
  Incoming interface: Null, RPF nbr 0.0.0.0
  Outgoing interface list:
    Loopback0, Forward/Sparse, 00:45:34/00:02:25


R3#show ip mroute vrf one

(*, 239.0.0.1), 00:03:52/00:02:35, RP 40.40.40.40, flags: S
  Incoming interface: Tunnel1, RPF nbr 10.10.10.10
  Outgoing interface list:
    FastEthernet1/1, Forward/Sparse, 00:03:52/00:02:35

(192.168.49.9, 239.0.0.1), 00:03:19/00:00:10, flags: TY
  Incoming interface: Tunnel1, RPF nbr 10.10.10.10, MDT:[10.10.10.10,232.1.1.0]/00:01:50
  Outgoing interface list:
    FastEthernet1/1, Forward/Sparse, 00:03:19/00:03:07

(*, 239.0.0.2), 00:02:05/stopped, RP 40.40.40.40, flags: SP
  Incoming interface: Tunnel1, RPF nbr 10.10.10.10
  Outgoing interface list: Null

(192.168.49.9, 239.0.0.2), 00:02:05/00:01:47, flags: PT
  Incoming interface: Tunnel1, RPF nbr 10.10.10.10, MDT:[10.10.10.10,232.1.1.1]/00:01:50
  Outgoing interface list: Null

(*, 224.0.1.40), 00:17:02/00:02:59, RP 0.0.0.0, flags: DPL
  Incoming interface: Null, RPF nbr 0.0.0.0
  Outgoing interface list: Null

DMVPN with Protection Over IPSEC

Dynamic Multipoint Virtual Private Network (DMVPN) is a dynamic tunneling form of a virtual private network (VPN) supported on Cisco IOS-based routers based on the standard protocols, GRE, NHRP and IPsec. DMVPN provides the capability for creating a dynamic-mesh VPN network without having to pre-configure (static) all possible tunnel end-point peers, including IPsec (Internet Protocol Security) and ISAKMP (Internet Security Association and Key Management Protocol) peers. DMVPN is initially configured to build out a hub-and-spoke network by statically configuring the hubs (VPN headends) on the spokes, no change in the configuration on the hub is required to accept new spokes. Using this initial hub-and-spoke network, tunnels between spokes can be dynamically built on demand (dynamic-mesh) without additional configuration on the hubs or spokes. This dynamic-mesh capability alleviates the need for and load on the hub to route data between the spoke networks.

It also allows the users to use the central services on the Hub site.

For example, using the central firewall polices on Hub site when all spoke sites users are going to internet through Hub site.

R1 Config

crypto isakmp policy 10

 encr 3des

 authentication pre-share

crypto isakmp key cisco address 0.0.0.0 0.0.0.0

crypto ipsec transform-set set1 esp-3des esp-sha-hmac

 mode transport

crypto ipsec profile dmvpn

 set transform-set set1

interface Loopback0

 ip address 1.1.1.1 255.255.255.255

interface Tunnel0

 ip address 10.10.10.1 255.255.255.0

 no ip redirects

 no ip next-hop-self eigrp 10

 ip nhrp authentication cisco

 ip nhrp map multicast dynamic

 ip nhrp network-id 123

 no ip split-horizon eigrp 10

 tunnel source Loopback0

 tunnel mode gre multipoint

 tunnel key 123

 tunnel protection ipsec profile dmvpn

interface FastEthernet0/0

 description CONN-TO-ISP

 ip address 192.168.14.1 255.255.255.0

interface FastEthernet0/1

 ip address 10.10.15.1 255.255.255.0

router eigrp 10

 network 10.10.0.0 0.0.255.255

 no auto-summary

router ospf 1

 router-id 1.1.1.1

 network 1.1.1.1 0.0.0.0 area 0

 network 192.168.0.0 0.0.255.255 area 0

R2 Config

crypto isakmp policy 10

 encr 3des

 authentication pre-share

crypto isakmp key cisco address 0.0.0.0 0.0.0.0

crypto ipsec transform-set set1 esp-3des esp-sha-hmac

 mode transport

crypto ipsec profile dmvpn

 set transform-set set1

interface Loopback0

 ip address 2.2.2.2 255.255.255.255

interface Tunnel0

 ip address 10.10.10.2 255.255.255.0

 no ip redirects

 ip nhrp authentication cisco

 ip nhrp map 10.10.10.1 1.1.1.1

 ip nhrp map multicast 1.1.1.1

 ip nhrp network-id 123

 ip nhrp nhs 10.10.10.1

 tunnel source Loopback0

 tunnel mode gre multipoint

 tunnel key 123

 tunnel protection ipsec profile dmvpn

interface FastEthernet0/0

 description CONN-TO-ISP

 ip address 192.168.24.2 255.255.255.0

interface FastEthernet0/1

 ip address 10.10.26.2 255.255.255.0

router eigrp 10

 network 10.10.0.0 0.0.255.255

 no auto-summary

router ospf 1

 router-id 2.2.2.2

 network 2.2.2.2 0.0.0.0 area 0

 network 192.168.0.0 0.0.255.255 area 0

R3 Config

crypto isakmp policy 10

 encr 3des

 authentication pre-share

crypto isakmp key cisco address 0.0.0.0 0.0.0.0

crypto ipsec transform-set set1 esp-3des esp-sha-hmac

 mode transport

crypto ipsec profile dmvpn

 set transform-set set1

interface Loopback0

 ip address 3.3.3.3 255.255.255.255

interface Tunnel0

 ip address 10.10.10.3 255.255.255.0

 no ip redirects

 ip nhrp authentication cisco

 ip nhrp map 10.10.10.1 1.1.1.1

 ip nhrp map multicast 1.1.1.1

 ip nhrp network-id 123

 ip nhrp nhs 10.10.10.1

 tunnel source Loopback0

 tunnel mode gre multipoint

 tunnel key 123

 tunnel protection ipsec profile dmvpn

interface FastEthernet0/0

 ip address 10.10.37.3 255.255.255.0

interface FastEthernet1/0

 description CONN-TO-ISP

 ip address 192.168.34.3 255.255.255.0

router eigrp 10

 network 10.10.0.0 0.0.255.255

 no auto-summary

router ospf 1

 router-id 3.3.3.3

 network 3.3.3.3 0.0.0.0 area 0

 network 192.168.0.0 0.0.255.255 area 0

R4 Config

interface FastEthernet0/0

 ip address 192.168.14.4 255.255.255.0

interface FastEthernet0/1

 ip address 192.168.24.4 255.255.255.0

interface FastEthernet1/0

 ip address 192.168.34.4 255.255.255.0

router ospf 1

 network 0.0.0.0 255.255.255.255 area 0

R5 Config

interface FastEthernet0/0

ip address 10.10.15.5 255.255.255.0

ip route 0.0.0.0 0.0.0.0 10.10.15.1

R6 Config

interface FastEthernet0/0

ip address 10.10.26.6 255.255.255.0

ip route 0.0.0.0 0.0.0.0 10.10.26.2

R7 Config

interface FastEthernet0/0

ip address 10.10.37.7 255.255.255.0

ip route 0.0.0.0 0.0.0.0 10.10.37.3

Verification

R1#show crypto isakmp sa
dst             src             state          conn-id slot status
1.1.1.1         3.3.3.3         QM_IDLE              4    0 ACTIVE
1.1.1.1         4.4.4.4         QM_IDLE              2    0 ACTIVE
1.1.1.1         2.2.2.2         QM_IDLE              3    0 ACTIVE

R2#show ip route eigrp

D       10.10.15.0 [90/297270016] via 10.10.10.1, 00:22:58, Tunnel0
D       10.10.37.0 [90/310070016] via 10.10.10.3, 00:19:38, Tunnel0

R5#ping 10.10.37.7

!!!!!
